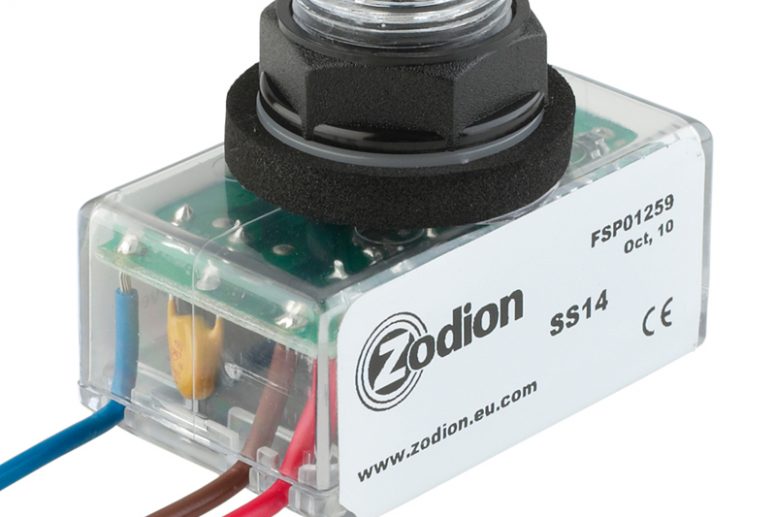

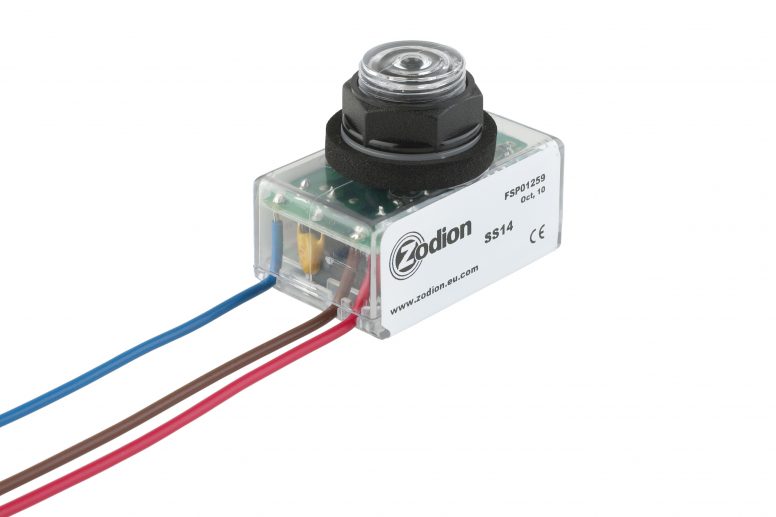

• Highly effective miniature photocell
• Designed for commercial applications requiring positive ratio switching
• Utilises a special sensor to provide reduced sensitivity to discharge light sources
• Remote option available which has the photodiode separated from the main circuitry for tight installation restrictions or low-level installations where human interaction must be avoided.

• Includes an Electro Magnetic Relay
• Predictive load transfer to minimise switching stresses
• Optical sensor for long term accuracy

Sensor:

Sensor: Filtered Photodiode

Switching Technology:

Switching Technology: Electronic EM Relay Load Switching

Switching Regime in Lux and Time:

70 Lux / 35 Lux: Yes

55 Lux / 28 Lux: Yes (SS14 only)

35 Lux / 18 Lux: Yes (SS14 only)

Switching Ratio: 1:1 or 1:0.5

Switching Delay: 10 – 30 seconds

Load:

Maximum load for LED lighting: 250 Watts

Maximum load for High Pressure Sodium: 500 Watts

Maximum load for Metal Halide: 500 Watts

Maximum load for GLS or incandescent: 1200 Watts

Supply and Consumption:

Voltage: 198-264

Surge Suppression: 20 Joules

Frequency: 47-63Hz

Consumption in Watts: <0.5

UMSUG Charge Code: 94 0001 1000 100

Operating Temperature:

Min / Max operating ambient temp range: -20 / +75°C

IP Rating: IP65 when installed

Warranty: 3 years

Compliance Standards:

BS5972, BS EN IEC 55015, BS EN 60529, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN IEC61000-4-2, BS EN IEC 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6, BSEN IEC 61000-4-11, BS EN 61547, RoHS. CE, UKCA
